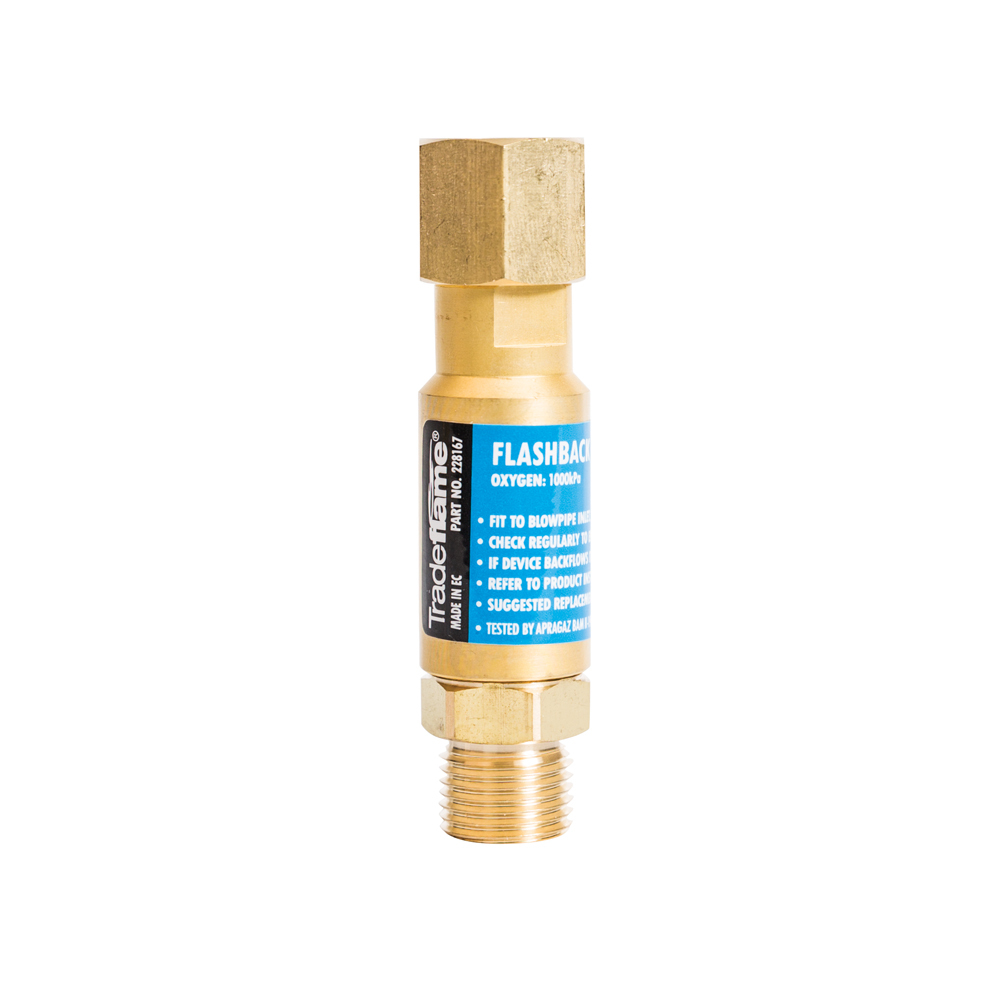

Flashback Arrestor - Oxygen / Blowpipe End

$54.95
Sold Out
Please be aware that we are currently upgrading our systems, backordered items will not be shipped until Mid October 2021
SKU: 228167


Flashback Arrestors are designed for medium flow applications and are used to prevent flashbacks in oxy/fuel systems.

The safety contained within the flashback arrestor are dependent upon the type of arrestor:

  1. A sintered flame arresting element (FA) cools the flame to below the ignition temperature of the gas or gas mixture and prevents flashback.
  2. A non-return valve is to prevent reverse flow of gases (NV) and ensures the gas only flows in one direction.
  3. A thermal cut off device (TV) closes automatically at certain temperatures and cuts off the gas flow long before ignition temperature of the gas mixture is reached.

Features

  • Non-return valve
  • Sintered flame arresting element
  • Inlet filter
  • Thermal cut-off (regulator end only)
  • Conforms to AS4603, EN730-1





(228167)

  • Gas Type: Oxygen
  • Label colour: Blue
  • Connects to: Blowpipe end
  • Connections: 5/8" - 18UNF RF
  • Pressure rating (OXY): 2,000 kPa
  • Pressure rating (LPG) -
  • Pressure rating (ACET) -
  • Pressure rating (HYD) -
  • Max. working pressure (OXY): 1,000 kPa
  • Max. working pressure (LPG) -
  • Max. working pressure (NAT GAS) -
  • Max. working pressure (ACET) -
  • Max. working pressure (HYD) -
  • Max. air flow: 1,000 L/min
SKU 228167
Barcode # 9312652090942
Brand TRADEFLAME
Shipping Weight 0.1000kg
Shipping Width 0.006m
Shipping Height 0.003m
Shipping Length 0.017m
